Inleiding

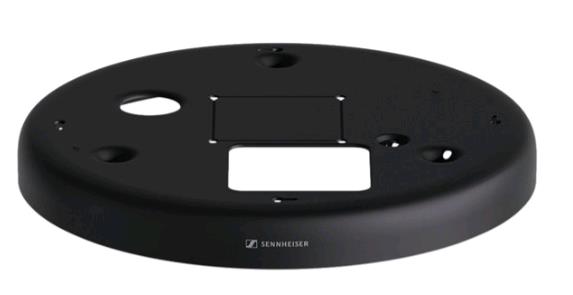

TCC M-S-B is used to surface mount or suspend the TeamConnect Ceiling Medium. It comes with a TeamConnect Ceiling Medium and fine housing.

Features

• Dynamic range of 83 dB and frequency response of 100 - 16000 Hz for clear audio
• Multiple connectivity options including RJ-45, Dante, and 3-pin Phoenix for easy integration
• Recommended ceiling placement for optimal sound capture in conference settings
• Low noise level of 15 dBA with a signal-to-noise ratio of 79 dB for focused audio
• Complies with IEC/EN 62368-1 and UL 2043 standards for safety and regulatory assurance

Specifications

General

Colour	Black
Height	4.6 cm
Weight	4.9 kg
Diameter	47.7 cm
Recommended Use	Conference
Product Type	Microphone - RJ-45

Miscellaneous

Compliant Standards

IEC/EN 62368-1, UL 2043

Power

Power Consumption Operational

8 Watt

Connections

Connector Type

LAN/power (RJ-45) Dante (RJ-45) Audio line-out (3 pin Phoenix)

Microphone

Frequency Response	100 - 16000 Hz
Max Sound Pressure	98 dB
Signal-To-Noise Ratio	79 dB
Signal-to-Noise Ratio	15 dBA
Dynamic Range	83 dB
Connectivity Technology	Wired
Microphone Technology	Condenser
Recommended Placing	Ceiling
