| TVA incluse | |
|---|---|
| Base Price: | €5.298,87 |
| Total: | €5.298,87 |

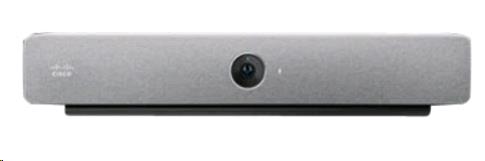

The Cisco Webex Room Bar - No Radio is a high-quality video conferencing device designed to transform your meetings into a seamless and interactive experience. With its 4-microphone array utilizing beamforming technology, it captures audio with exceptional clarity, ensuring every participant is heard clearly. The device's digital video camera supports both Full HD and 4K resolutions, delivering crisp, detailed visuals that bring your meetings to life. Security is a top priority, and the Room Bar is equipped with AES encryption, Secure Shell (SSH), and TLS protocols to safeguard your communications. Additionally, its advanced video capabilities, including a wide field of view, automatic brightness adjustment, and speaker tracking, automatically enhance focus on the speaker, making meetings more engaging. The Room Bar also excels in network performance, supporting Quality of Service (QoS) standards to provide smooth, uninterrupted video conferencing. Whether for small meetings or large boardrooms, the Cisco Webex Room Bar - No Radio is your solution for reliable, secure, and high-quality video conferencing.
General
| Depth | 6.4 cm |
| Weight | 1.5 kg |
| Width | 53.4 cm |
| Height | 8.2 cm |
| IP Address Assignment | DHCP |
| Quality of Service | IEEE 802.1Q (VLAN), IEEE 802.1p |
| Device Type | Video conferencing device |
| Enclosure Colour | First light |
| Video Codecs | H.263, H.264, H.239, H.264 AVC |
| Voice Codecs | G.711, G.722, G.722.1, G.729, AAC-LD, Opus |
| VoIP Protocols | SIP, H.323, H.245, SRTP |
| Security | H.323, H.235 v3, TLS, IEEE 802.1X, AES, 256 bit AES, 128 bit AES, SRTP, Secure Shell (SSH) |
| Network Protocols | SIP, DNS, NTP, HTTP, HTTPS, DHCP, IPv4, IPv6, TLS, Cisco Discovery Protocol (CDP), SRTP, SSH |
Expansion / Connectivity
| Interfaces | 1 x USB-C / DisplayPort - 24 pin USB-C 1 x audio / video - HDMI input - 19 pin HDMI Type A 2 x audio / video - HDMI output - 19 pin HDMI Type A 1 x audio - line-in/microphone - mini-phone stereo 3.5 mm 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 1 x USB 2.0 - input - 9 pin USB Type A 1 x USB - 5 pin Micro-USB Type A |
Manufacturer Warranty
| Service & Support | Limited warranty - 90 days |
Networking
| Connectivity Technology | Wired |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, Ethernet |
| Network / Transport Protocol | DNS, NTP, DHCP, IPv4, IPv6, HTTP, HTTPs |
| Features | WebRTC, Quality of Service (QoS), DTMF support, DiffServ support, Certificate Authority Proxy Function (CAPF), Class of Service (CoS), VoIP support, URI Dialing, automatic gain control (AGC) |
Miscellaneous
| Software Certification | Cisco Webex Certified, Certified for Microsoft Teams Rooms |
| Compliant Standards | IEEE 802.1x, Directive 2014/53/EU, Directive 2014/30/EU, Directive 2014/35/EU, RoHS, Directive 2011/65/EU, Directive 2002/96/EU, WEEE, EMC, NRTL, FCC CFR47 Part 15 B Class A, FCC CFR47 Part 15 C, FCC CFR47 Part 15 E, FCC, AES-128, AES-256, CEC 2.0 |
Power
| Power Consumption Operational | 20 Watt |
| Power Device | Power supply - external |
| Voltage Required | AC 100-240 V (50/60 Hz) |
Software / System Requirements
| Software Included | RoomOS 11 or later |
Environmental Parameters
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 90% RH |
Modem
| Data Compression Protocol | H.263, H.264, G.711, G.722, G.722.1, G.729, H.239 |
| Digital Signaling Protocol | BFCP, SIP, H.323, H.239, H.245, H.460.18, H.460.19 |
Video Input
| Digital Zoom | 5 |
| Type | Digital video camera (colour) - integrated |
| Video Modes | 1080/60p, 4K/30p |
| Digital Video Capture Resolution | 3840 x 2160, 1920 x 1080 |
| Interface Type | DisplayPort input, HDMI input, HDMI output |
| Features | 12 megapixels, 30 fps, 1/2.3 CMOS image sensor type, F 2.5 lens aperture, 120° field of view (horizontal), 95° field of view (vertical), face detection, speaker tracking, automatic brightness adjustment, auto white balance, fixed focus, AI-powered, noise reduction, 4K wireless content sharing, Miracast connectivity, Acoustic Echo Cancellation (AEC) |
Audio Output
| Sound Output Mode | Stereo |
| Type | Speaker(s) |
| Frequency Response | 100 - 20000 Hz |
Audio Input
| Microphone Operation Mode | Beamforming |
| Type | 4-microphone array - integrated |
