Introduction

Precision-engineered for graphics excellence with hardware-calibrated precision (Delta E<2), calman ready calibration, and UHD Nano IPS display

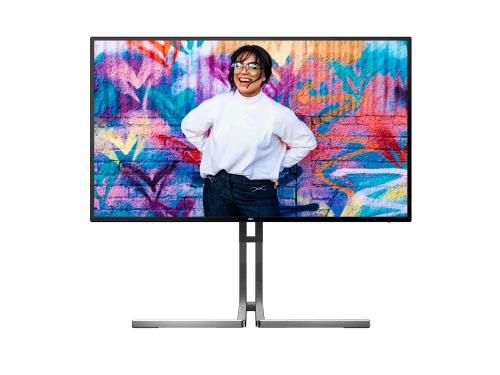

The AOC Graphic Pro U27U3CV delivers exceptional color accuracy straight out of the box, thanks to its hardware calibration achieving Delta E<2 (sRGB). Fine-tune settings effortlessly with the Calman Ready feature for optimal performance. With 98% coverage of the DCI P3, 100% of the sRGB and 100% of the Rec 709 color space, it's ideal for graphic and photo editing, offering superior quality compared to standard monitors. Its Delta E < 2 accuracy ensures precise color rendering, surpassing human eye perception. Enhanced with a 4-sided frameless screen, Vesa DisplayHDR 400, USB-C docking station, and sleek design, it stands as the top choice for professionals.

Display

Display diagonal

68.6 cm (27")

Display resolution

3840 x 2160 pixels

HD type

4K Ultra HD

Native aspect ratio

16:9

Display technology

LCD

Panel type

Nano IPS

LED backlight

Yes

Backlight type

W-LED

Touchscreen

No

Display brightness (typical)

400 cd/m²

Response time

4 ms

Anti-glare screen

Yes

Screen shape

Flat

Contrast ratio (typical)

1000:1

Maximum refresh rate

60 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.073 billion colours

Pixel pitch

0.1554 x 0.1554 mm

Horizontal scan range

30 - 140 kHz

Vertical scan range

23 - 75 Hz

Viewable size, horizontal

59.7 cm

Viewable size, vertical

33.6 cm

Display diagonal (metric)

68.5 cm

High Dynamic Range (HDR) supported

Yes

High Dynamic Range (HDR) technology

High Dynamic Range (HDR) 400

DDC/CI

Yes

Haze rate

25%

Surface hardness

3H

Colour gamut standard

DCI-P3

Colour gamut

98%

Performance

Fast charging

Yes

VESA Adaptive Sync support

Yes

Flicker-free technology

Yes

Multimedia

Number of speakers

2

RMS rated power

6 W

Built-in speaker(s)

Yes

Built-in camera

No

Design

Market positioning

Graphics design

Product colour

Black

Frameless design

Yes

Detachable stand

Yes

Feet colour

Grey

Ports & interfaces

Built-in USB hub

Yes

USB hub version

3.2 Gen 2 (3.1 Gen 2)

USB upstream port type

USB Type-C

Number of upstream ports

2

USB Type-A downstream ports quantity

4

USB Type-C downstream ports quantity

1

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

96 W

HDMI

Yes

HDMI ports quantity

2

HDMI version

2.0

DisplayPorts quantity

1

DisplayPort version

1.4

Headphone out

Yes

Headphone outputs

1

AC (power) in

Yes

Network

Ethernet LAN

Yes

Ergonomics

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Height adjustment

Yes

Height adjustment

15 cm

Pivot

Yes

Pivot angle

-90 - 90°

Swivelling

Yes

Swivel angle range

-15 - 15°

Tilt adjustment

Yes

Tilt angle range

-6.5 - 23°

Picture-in-Picture

Yes

Plug and Play

Yes

Power

Power consumption (typical)

44 W

Power consumption (standby)

0.3 W

Power consumption (max)

206 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

3 A

Power supply type

Internal

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-25 - 55 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

5 - 93%

Operating altitude

0 - 5000 m

Non-operating altitude

0 - 12192 m

Weight & dimensions

Width (with stand)

612.7 mm

Depth (with stand)

238.4 mm

Height (with stand)

543.6 mm

Weight (with stand)

6.54 kg

Packaging data

Package type

Box

Packaging content

Stand included

Yes

Cables included

AC

Quick start guide

Yes
