Introduction

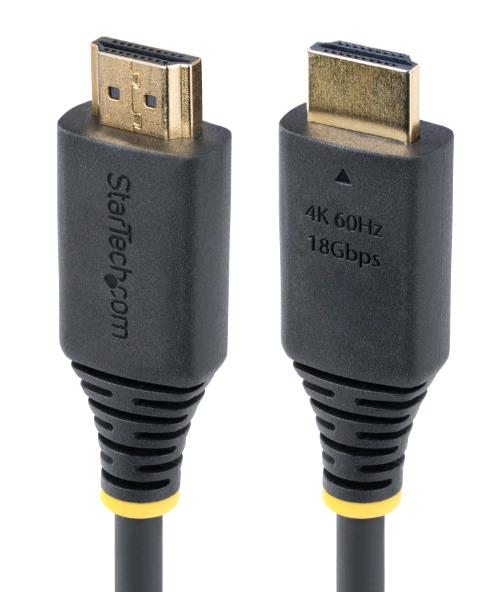

Connect reliably between HDMI UHD devices using this High Speed HDMI Cable

Connect to a 4K UHD TV or monitor, using this HDMI 2.0 Cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked HDMI cables. Eliminate guesswork and always choose the appropriate cable to support full HDMI 2.0 with Ethernet capabilities.

Seamless Compatibility

For seamless operation between HDMI-enabled devices, the HDMI cable is designed for guaranteed HDMI 2.0 performance and backward compatibility.

Durable Design

This High Speed HDMI Cable features a flexible TPE outer jacket that is tested to withstand 2,000 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable. The durable Gold-plated connectors are rated to operate beyond 10,000 insertions.

Supported HDMI 2.0 Features:

This HDMI Cable supports full HDMI 2.0 features:

• Resolutions up to 4K 60Hz using a compatible HDMI source and display
• Supports high refresh rates including 1440p 144Hz and 1080p 240Hz
• 21:9 Aspect Ratio support for cinematic viewing experiences
• High Dynamic Range (HDR10) for higher contrast ratio and vibrant picture quality
• High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
• Audio Return Channel (ARC) for sending audio from the TV back to an AV receiver or soundbar
• Up to 32 Uncompressed Digital Audio Channels
• HDMI Ethernet Channel (HEC) for network connectivity over HDMI
• Backward compatible with previous HDMI versions

This HDMI 2.0 Cord is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.

The StarTech.com Advantage

Features

Connector 1

HDMI Type A (Standard)

Connector 2

HDMI Type A (Standard)

Connector 1 gender

Male

Connector 2 gender

Male

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Product colour

Black

HDMI version

2.0

Supported graphics resolutions

3840 x 2160, 2560 x 1440, 1920 x 1080 (HD 1080)

Audio Return Channel (ARC)

Yes

HDMI Ethernet channel

Yes

HDCP

Yes

HDCP version

2.2

Data transfer rate

18 Gbit/s

High Dynamic Range (HDR) supported

Yes

High Dynamic Range (HDR) technology

High Dynamic Range 10 (HDR10)

Supported digital audio channels (uncompressed)

32

Maximum refresh rate

240 Hz

AWG wire size

30

Connector contacts plating

Gold

Cable type

Round cable

Cable jacket material

Thermoplastic elastomer (TPE)

Cable shielding

Aluminum mylar foil

Colour depth

12 bit

Quantity per pack

1 pc(s)

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Cable diameter

6 mm

Weight

40 g

Package width

125 mm

Package depth

90 mm

Package height

10 mm

Package weight

45 g

Technical details

Doesn't contain

Halogen

Compliance certificates

RoHS

Logistics data

Master (outer) case width

400 mm

Master (outer) case length

300 mm

Master (outer) case height

300 mm

Products per master (outer) case

180 pc(s)
