Introduction

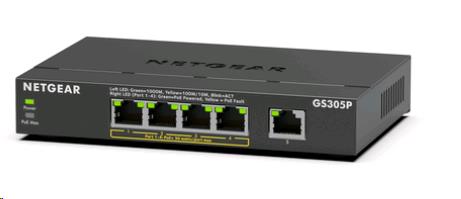

5-Port Switch Gigabit Unmanaged PoE switch with 4 PoE+ ports and 63W power budget to power Wireless AP, IP Cameras, IP Phones and more.

Management features

Switch type

Unmanaged

Quality of Service (QoS) support

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

5

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

DC-in jack

Network

Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G support

No

Full duplex

Yes

Half duplex

Yes

Flow control support

Yes

Auto MDI/MDI-X

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Auto-sensing

Yes

Data transmission

Switching capacity

10 Gbit/s

MAC address table

2000 entries

Jumbo frames support

Yes

Jumbo frames

9216

Packet forwarding rate (1 Gbps)

1448000 pps

Packet buffer memory

0.128 MB

Design

Rack mounting

No

Stackable

No

Product colour

Black

LED indicators

Yes

Wall mountable

Yes

Performance

Mean time between failures (MTBF)

4113947 h

Power

Power source

DC

DC input voltage

54 V

Input current

1.25 A

Power consumption (max)

66.78 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

63 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90%

Operating altitude

0 - 3000 m

Heat dissipation

228.38 BTU/h

Weight & dimensions

Width

158 mm

Depth

101 mm

Height

27 mm

Weight

400 g
