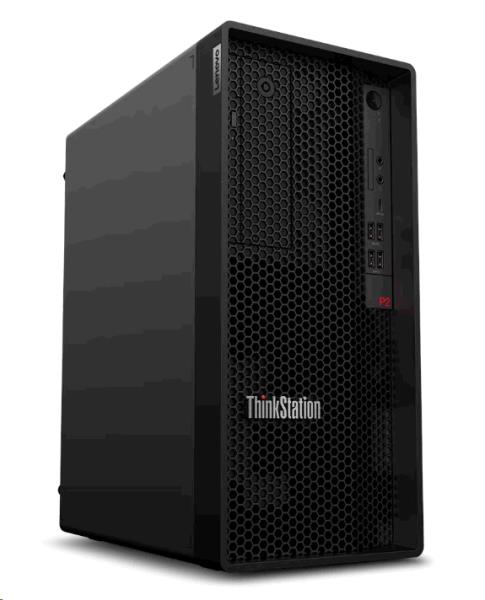

LENOVO THINKSTATION P2 TOWER GEN 2
Workstation Power at Desktop Value
Workstation performance is within reach with the Lenovo ThinkStation P2 Tower Gen 2. Intel® Core™ Ultra processors with an integrated neural processing unit (NPU) and NVIDIA RTX™ Ada Generation graphics set a new standard in the entry space while offering outstanding value. This workstation is ideal for entry-level CAD, product design, STEAM, and beyond.

POTENT COMBINED AI ACCELERATION
Accelerate Your Workflows with Advanced AI
Push your creative boundaries with next-generation AI – up to 36 TOPS from the system and integrated NPU, plus 192 TOPS from NVIDIA RTX™ Ada graphics. From simulation and modeling to automation, the ThinkStation P2 Tower Gen 2 empowers teams to streamline tasks and innovate faster.

CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Processor

Processor manufacturer

Intel

Processor family

Intel Core Ultra 5

Processor generation

Intel Core Ultra (Series 2)

Processor model

225

Processor cores

10

Processor threads

10

Processor boost frequency

4.9 GHz

Performance cores

6

Efficient cores

4

Performance-core Max Turbo Frequency

5.5 GHz

Efficient-core Max Turbo Frequency

4.4 GHz

Performance-core base frequency

3.7 GHz

Efficient-core base frequency

3.2 GHz

Processor cache

20 MB

Processor cache type

Smart Cache

Number of processors installed

1

Processor socket

LGA 1851 (Socket V1)

Processor base power

65 W

Maximum turbo power

121 W

Neural processor unit (NPU)

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Yes

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Total processor performance up to

23 TOPs

NPU performance up to

13 TOPs

GPU performance up to

4 TOPs

Memory

Internal memory

32 GB

Maximum internal memory

128 GB

Internal memory type

DDR5-SDRAM

Memory layout (slots x size)

2 x 16 GB

Memory slots

4x DIMM

Memory clock speed

5600 MHz

Non-ECC

Yes

Memory channels

Single-channel

Buffered memory type

Unregistered (unbuffered)

Storage

Total storage capacity

512 GB

Storage media

SSD

Optical drive type

No

Number of storage drives installed

1

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express 4.0

NVMe

Yes

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Graphics

Discrete graphics card

No

On-board graphics card

Yes

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card family

Intel® Graphics

On-board graphics card model

Intel® Graphics

Network

Ethernet LAN

Yes

Ethernet LAN data rates

1000 Mbit/s

Cabling technology

10/100/1000Base-T(X)

LAN controller

Intel® I219-LM

Wi-Fi

No

Ports & interfaces

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2x2 Type-C ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

DisplayPorts quantity

2

DisplayPort version

1.4

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Line-out

Yes

Combo headphone/mic port

Yes

Design

Chassis type

Tower

Volume

17 L

Placement supported

Vertical

Cable lock slot

Yes

Cable lock slot type

Kensington

Product colour

Black

Performance

Motherboard chipset

Intel W880

Built-in speaker(s)

Yes

Password protection

Yes

Password protection type

BIOS, Power on

Trusted Platform Module (TPM)

Yes

Product type

Workstation

Trusted Platform Module (TPM) version

2.0

Software

Operating system architecture

64-bit

Operating system language

German, Dutch, English, French, Italian

Operating system installed

Windows 11 Pro

Bundled software

Lenovo AI Now

Power

Power supply

500 W

Power supply input voltage

100 - 240 V

Power supply input frequency

50/60 Hz

80 PLUS certification

80 PLUS Platinum

Operational conditions

Operating temperature (T-T)

10 - 35 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

10 - 90%

Operating altitude

0 - 3048 m

Non-operating altitude

0 - 12192 m

Certificates

Compliance certificates

RoHS

Certification

TCO Certified 10.0

Weight & dimensions

Width

170 mm

Depth

315.4 mm

Height

376 mm

Weight

9.67 kg

Packaging content

Mouse included

Yes

Mouse connectivity

Wired

Display

Display included

No

Audio

Audio chip

Realtek ALC623-CG

Audio system

High Definition Audio

Number of speakers

1
