Introduction

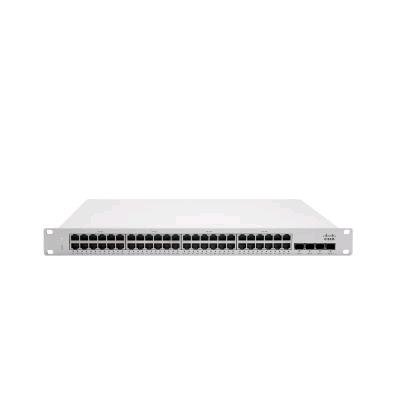

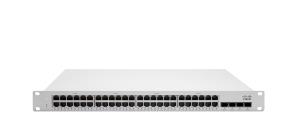

Meraki cloud-managed switches feature ease of multi-site management through a dashboard used to manage the entire Meraki portfolio. Meraki switches feature excellent tools for reducing TCO: zero-touch configuration and remote troubleshooting.

- General purpose switch for campus or branch
- Physical and virtual stacking
- Redundant power
- Dynamic routing

Management features

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Y

Web-based management

Y

System event log

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

48

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP+ modules quantity

4

Network

Networking standards

IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1w

Port mirroring

Y

Flow control support

Y

Broadcast storm control

Y

Auto MDI/MDI-X

Y

Spanning tree protocol

Y

VLAN support

Y

Number of VLANs

4095

Data transmission

Switching capacity

172 Gbit/s

MAC address table

32000 entries

Number of queues

8

Jumbo frames support

Y

Jumbo frames

9600

Security

DHCP features

DHCP server,DHCP client

Access Control List (ACL)

Y

IGMP snooping

Y

Security algorithms

802.1x RADIUS

Multicast features

Multicast support

Y

Design

Rack mounting

Y

Stackable

Y

Form factor

1U

Product colour

Grey

Power

Power supply included

Y

Number of power supply units

1

AC input voltage

100 - 240 V

AC input frequency

47/63 Hz

Power consumption (typical)

25 W

Power consumption (max)

874 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

484.6 mm

Depth

516 mm

Height

43.8 mm

Weight

5.82 kg
