Introduction

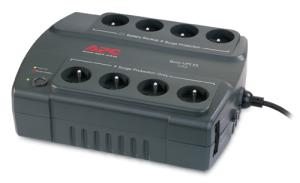

APC Back-UPS ES, 700VA/405W, Input 230V/Output 230V

Features

Protection

• Battery-protected and surge-only outlets
  Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment

• Power conditioning
  Protects connected loads from surges, spikes, lightning, and other power disturbances.

• Dataline Surge Protection
  Provides protection of connected equipment from power surges on the data lines.

• Safety-agency approved
  Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.

Convenience

• Audible alarms
  Provides notification of changing utility power and UPS conditions.

• Automatic self-test
  Periodic battery self-test ensures early detection of a battery that needs to be replaced.

• Cold-start capable
  Provides temporary battery power when the utility power is out.

• Hot-swappable batteries
  Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

• Resettable circuit breakers
  Enables quick recovery from UPS overload events.

• Transformer-block spaced outlets
  Protect equipment with input transformer blocks without blocking access to other receptacles.

Technical Specifications

Output

• Output Power Capacity: 405 Watts / 700 VA
• Max Configurable Power: 405 Watts / 700 VA
• Nominal Output Voltage: 230V
• Crest Factor: 3 : 1
• Waveform Type: Stepped approximation to a sinewave
• Output Connections:
  • (4) French/Belgian (Battery Backup)
  • (4) French/Belgian (Surge Protection)

Input

• Nominal Input Voltage: 230V
• Input Frequency: 50/60 Hz
• Input Connections: French/Belgian
• Cord Length: 1.83 meters
• Input voltage range for main operations: 180 - 266V
• Maximum Input Current: 10A

Batteries & Runtime

• Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time: 16 hour(s)
• Replacement battery cartridge: RBC17
• RBC Quantity: 1
• Typical Backup Time at Half Load: 15.1 minutes (202.5 Watts)
• Typical Backup Time at Full Load: 3.9 minutes (405 Watts)
• Runtime Chart: Back-UPS ES

Communications & Management

• Control panel: LED Status display with On Line : On Battery
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

• Surge energy rating: 310 Joules:
• Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
• Dataline protection: RJ-45 Modem/Fax/DSL/10-100 Base-T protection

Physical

• Maximum Height: 86.00 mm
• Maximum Width: 230.00 mm
• Maximum depth: 285.00 mm
• Net Weight: 6.80 KG
• Color: Charcoal

Environmental

• Operating Environment: 0 - 40 °C
• Operating Relative Humidity: 0 - 95%
• Operating Elevation: 0-15000 meters
• Storage Temperature: 0 - 40 °C
• Storage Relative Humidity: 0 - 95%
• Storage Elevation: 0-15000 meters
• Audible noise at 1 meter from surface of unit: 45 dBA
